GMP Standard Modular Cleanroom Manul Swing Door Hospital Steel Door
Description:
Clean room steel door is made of environmentally friendly galvanized steel plate, antifouling and environmental protection materials. The surface is made of electrostatic spraying process. It has the characteristics of anti-pollution, green environmental protection, safety, antibacterial and corrosion resistance. The side of the door fan adopts the way of single seam stitching, easy to install, the surface of the door frame has no joint process, good sealing, beautiful, easy to clean and prevent pollution. With nylon handle, high quality hardware, antibacterial electrostatic spraying, reduce the breeding of bacteria, greatly improve the cleanliness of the space inside the medical equipment. It is mainly used in hospitals, ICU wards, clean rooms, food processing plants, pharmaceutical factories and cosmetics factories for sound insulation, heat insulation and clean requirements of the environment.
Parameters:
| Type | Manul single door | Size (as customized) | Max:1200*2800mm |
| Model | Flush/Clip | Color customization | Pink/green/blue/white... |
| Name | Manul single steel door | Wall thickness | 50mm-400mm |
| Door frame steel plate thickness | 1.2mm; 1.5mm | Door panel sheet material | Galvanized steel |
| Door panel steel plate thickness | 0.8mm; 1.0mm | Filling | High strength paper honeycomb/Aluminium honeycomb |
| Door panel thickness | 50mm | Window size | 400*600mm |
| Lock | 304 Stainless steel split U-lock | Hinge | 304 Stainless steel |
| Seal | Door panel with sealing rubber strip Automatic lift dust seal under door | Maximum number of samples per request(pieces) | 1 |
| Characteristic | Sound insulation,Good air tightness,fireproofing | Sample Pack Description | Bubble wrap+foam, or wooden box |
Applications:
Widely used in Hospitals, laboratories, pharmaceutical factories, electronics factories, new energy, aerospace, food factories, beverage factories, cosmetics and other purification fields.
Notices:
- According to actual needs, Customers can choose Windows, door closers, interlocks, louvers, access control system, etc
- packaging and transportation need to be more careful, it is recommended to use wooden cases.

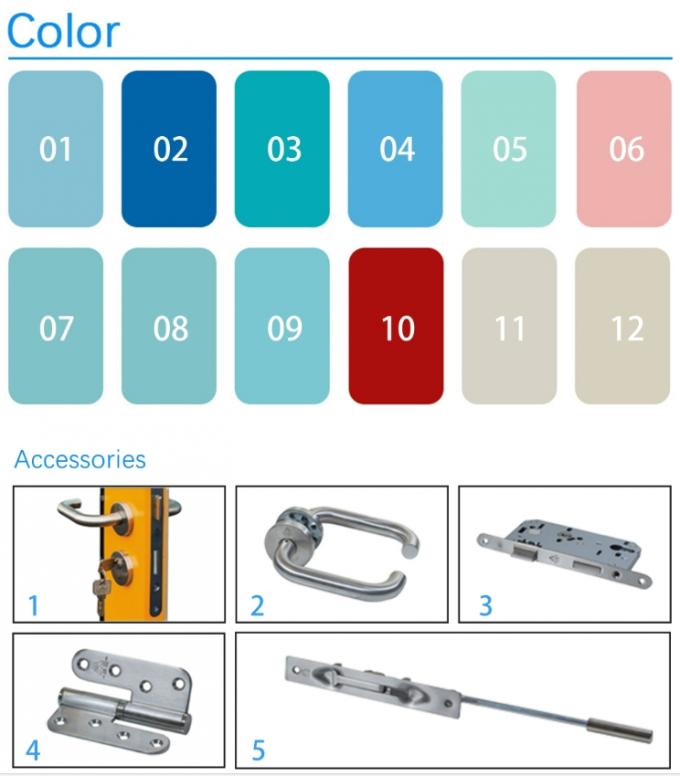

Colors:
Projcet Photos:
Factory Photos:
